Wednesday, November 22, 2006

Mega Project - SMART Tunnel

How many of you heard about this SMART Project before? I think those who living or always traveling in Kuala Lumpur will know a little bit of it. SMART is stand for 'Stormwater Management And Road Tunnel'.

I visited this project last year with different occasions. This project implemented by Department of Irrigation and Drainage Malaysia and estimate will complete by middle of year 2007.

The function of SMART Tunnel is to divert flood discharges from just below the Sg Klang/Sg Ampang confluence into the Holding Basin (Kg Berembang). A multiple-bay bell mouth Intake Structure diverts the flood discharge from the holding basin into bypass tunnel. The stormwater bypass tunnel of about 9.7 km in length conveys the flood flows to the Storage Pond (Taman Desa).


SMART Tunnel Concepts

A double decked motorway within the bypass for a length of approximately 3 km starts near Kg Pandan roundabout and ends near the Jalan Istana Interchange at Kuala Lumpur-Seremban Highway.

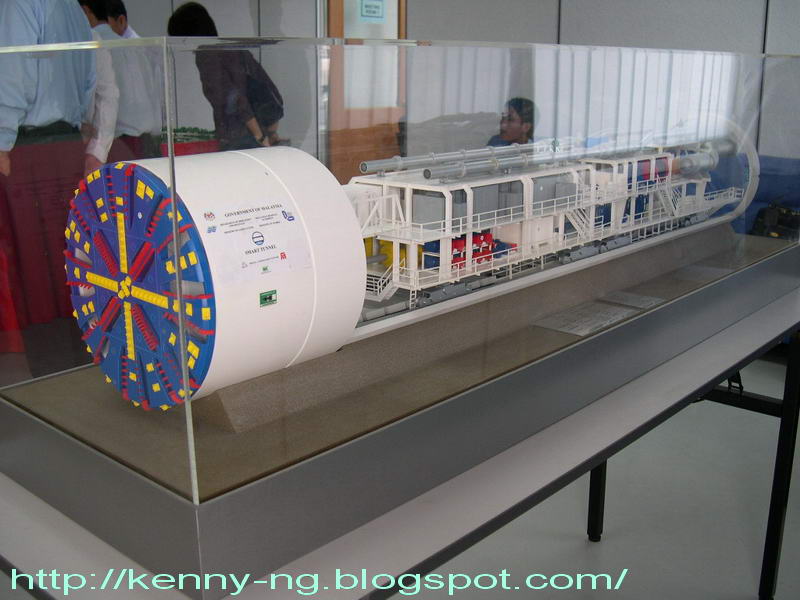

Model of Tunnel Boring Machine (TBM)


Actual TBM on site


Ready to bore


After bored... It looks small from top


When I went down, I was... WOW!!!


Construction of multiple-bay


View inside the tunnel


At the back of TBM

I was walking almost 2 km inside the tunnel then only met the TBM. The feeling really different if we walk at the open space, I felt quite difficult to breath because of confine space inside the tunnel, the air flow is very limited.

Anyway, during the construction of tunnel, females are not allow to enter the tunnel, I don't know why, it not only apply at here but whole world too! They explained to me it's like some kind of jinx will happen if female go into the tunnel during the construction going on.

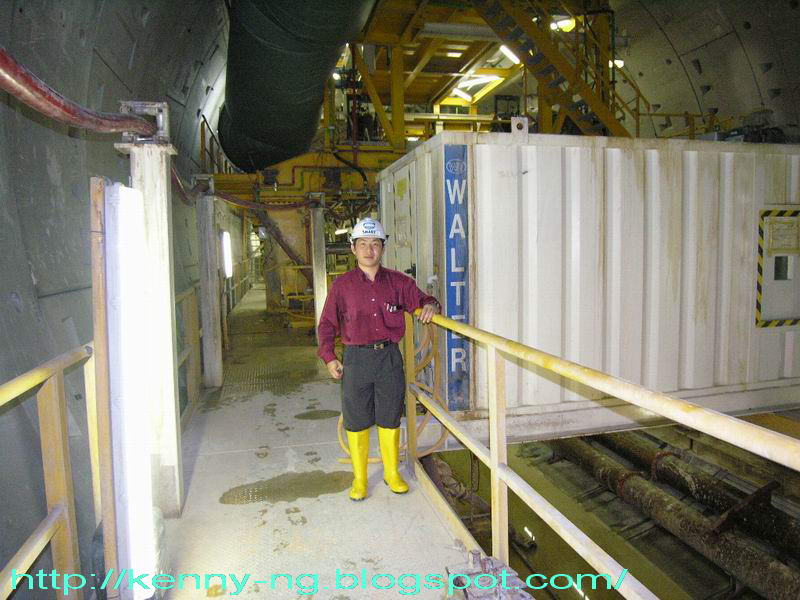

Posing on TBM...

Am I look like Malaysia version of Phuah Chu Kang (PCK)? With yellow safety boots and safety helmet. LOL...

For more informations about SMART Tunnel please visit to www.water.gov.my
